EV charging

Smart EV Type 2 Charger

AI-enabled Type 2 charger. The app ships with the unit: charger ON/OFF, and time, hardware, and voltage DLB. Add a hardware DLB device when the home’s main load must drive the limit.

Arnis Labs Type 2 wall charger: side, front, and charging handle

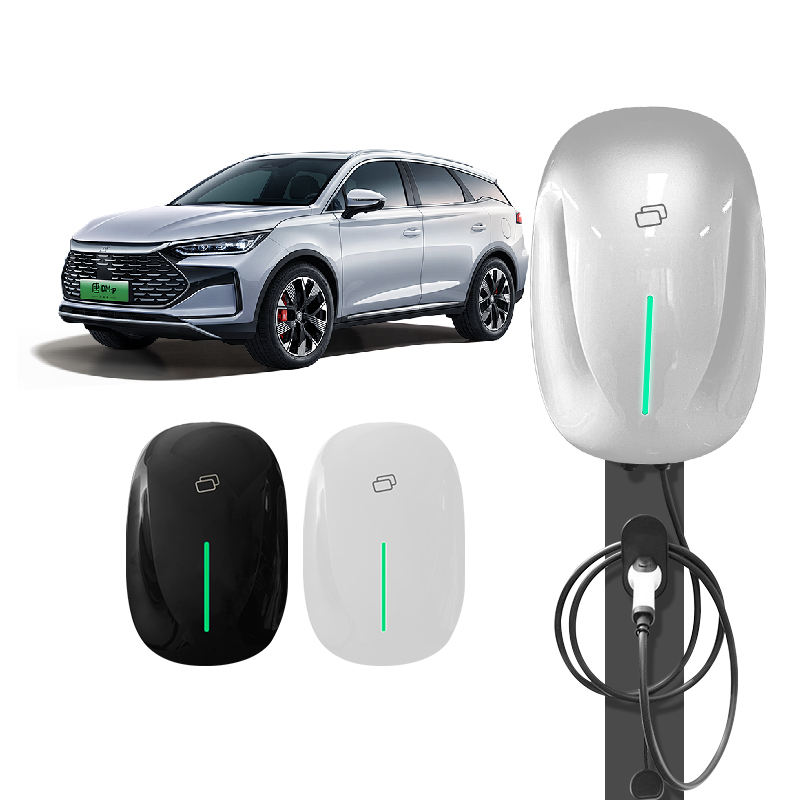

Type 2 charger in silver pedestal, black, and white finishes

Specifications

What you are buying

Connector	Type 2 AC
Intelligence	AI-enabled session and fault guidance
App	Pre-shipped. Charger ON/OFF, self-troubleshooting, remote control, and DLB
Time DLB	In the app. Set charger ON/OFF and dynamic charger load by time
Voltage DLB	In the app. Cuts charger load when supply voltage sags so the home line does not dim further
Hardware DLB	Optional device on the main load; talks to our charger and holds the home load limit
Software wing	Same suite as the tester: offline-capable, then sync

Self-troubleshootingGuided checks instead of a silent fault LED and a service ticket.

ON / OFF from the appThe owner turns the charger on or off from the phone. Time rules can do the same without standing at the unit.

DLB in three modesTime, hardware, and voltage DLB ship in the app. Hardware DLB also uses the optional main-load device.

Fewer ticketsDrivers clear what they can. Engineers keep the van for the rest.

In the app · Pre-shipped with the charger

Time, hardware, and voltage DLB

Dynamic load balancing is in the charger app from day one. The owner sets charger ON/OFF and charger load. A separate hardware DLB device is optional when the home’s main load must be measured at the board.

App · Included

Time-based DLB

Set charger ON or OFF by time, and set the dynamic load the charger may draw in each window — off-peak charge harder, peak hours hold back.

App + device

Hardware DLB

The optional DLB device connects to the main load and communicates with our charger. Charge current rises or falls so house + charger stay inside the home load limit.

App · Included

Voltage-based DLB

For areas where supply voltage drops in peak season. The app reduces charger load so charging does not pull the home voltage down further and dim house loads.

Optional hardware

DLB device on the main load

Quote this unit with the charger when time and voltage rules are not enough and the board itself must drive the limit.

1. Main loadThe DLB device connects at the home’s main load and sees what the house is already drawing.

2. Talks to our chargerIt communicates with the Arnis Labs Type 2 charger — the pair works as one system.

3. Adjusts charge currentWhen the home load rises, the charger steps down. When the home is quiet, charging can increase.

4. Stays inside the limitCombined house + charger draw remains within the home load limit.

Request a hardware DLB quote
